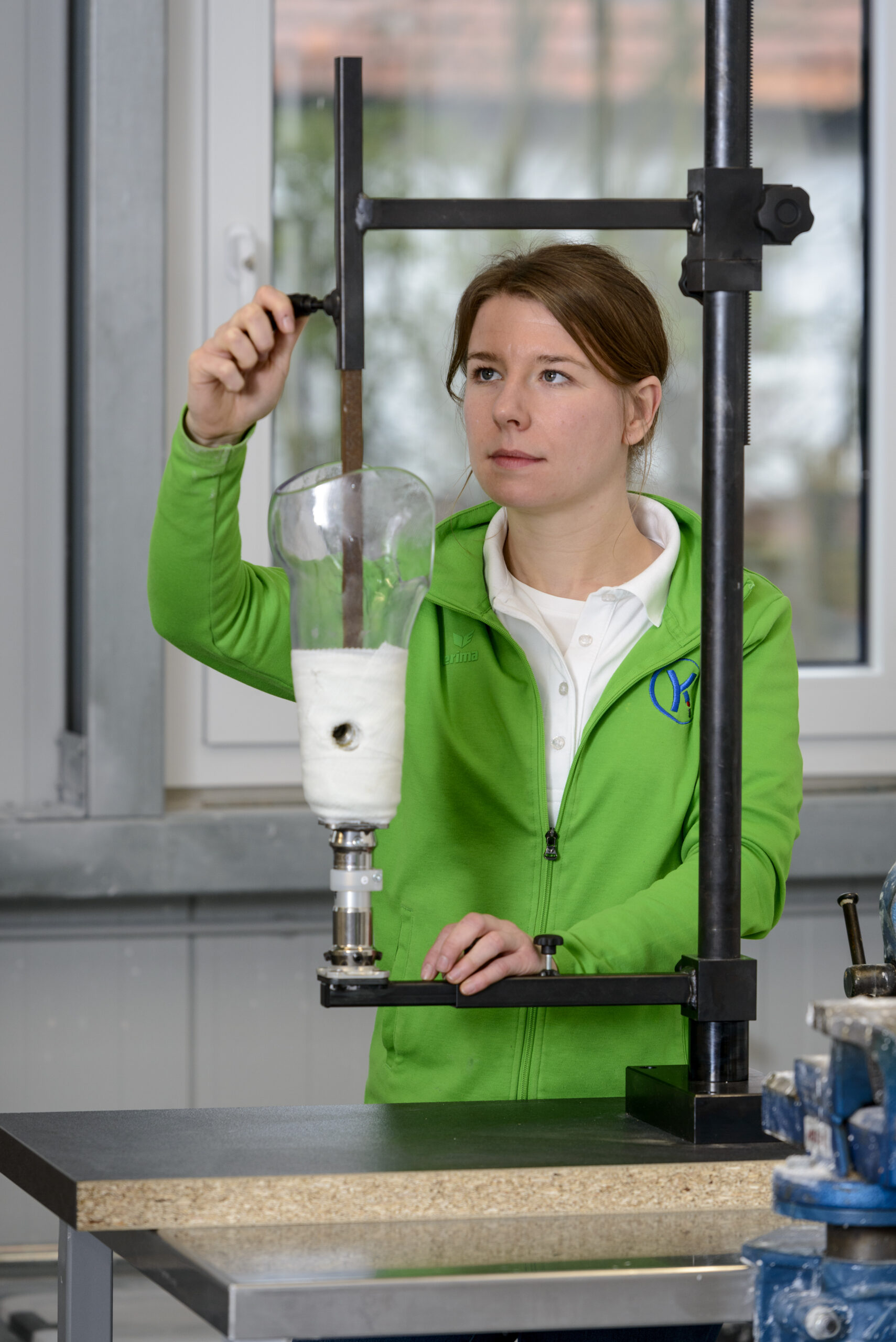

IC-KP copy device

IC-KP Copy Device

Technical details:

Made of steel and coated against corrosion.

Description of use:

  1. Lengthen the shaft individually so that the plaster does not overflow.
  2. Unscrew the test shaft from the foot (lateral and dorsal screw).
  3. The foot is replaced by the pyramid in the copy machine.
  4. Align the pyramid and screw everything.
  5. Define the height and determine the height with the block under the T-piece.
  6. Cast the shaft with plaster.
  7. After the plaster has hardened, loosen the lateral and dorsal screws.
  8. Push the T-piece up over the toothed segment and loosen the square bar at the front of the screw to remove the plaster with the shaft from the copying machine.
  9. Remove the shaft from the plaster individually.
  10. After the first casting of the shaft, clamp the plaster into the T-piece.
  11. Position the desired prosthesis parts relative to each other on the pyramid.
  12. Glue the 1st casting to the fitting parts and allow it to harden. (You can also foam here if desired).
  13. The statics have now been copied and the plaster removed as with the test shaft copy and can be prepared for the second casting.
  14. The copy machine is free again and can be used for the next copy.



Function:

  • Copying static structure to test socket
  • For adjusting shafts without a foot fitting
  • Statics can be corrected again

Adjustable:

  • Pyramid can be moved forwards and backwards and laterally over a radius
  • Shaft height through square bar in plaster
  • This is adjustable using a gear on the rear bar
  • Middle block to set height

Fixation:

The copy machine should be fixed on a plate.

Use:

  • The construction and settings may only be carried out by an orthopedic technician, as they have the necessary specialist knowledge and can therefore produce an optimal prosthesis.
